Terassillad ja -tunnelid

Terassillad ja -tunnelid on tugevad ja vastupidavad monteeritavad konstruktsioonid, mis on maantee- ning teedesüsteemide lahutamatuks osaks. Konstruktsioon koosneb lainelistest teraslehtedest, mis ühendatakse omavahel poltide ja mutritega.

Omadused

Terastorusillad pakuvad tõhusaid, majanduslikult soodsaid ja kiirelt paigaldatavaid lahendusi erinevate infrastruktuuriprojektide jaoks. Need on disainitud vastama tänapäevastele kõrgetele turva- ja kvaliteedinõuetele.

Erineva läbilõike ja kujuga profiillahendused võimaldavad projekte kohandada vastavalt spetsiifilistele geograafilistele ja keskkonnaalastele nõuetele. Konstruktsioonide korrosioonikindlus ja eluiga on tagatud aastakümneteks tänu terasdetailide tsinkimisele ning täiendavale epoksiid- või polümeerkaitsekihile.



Teraskonstruktsioonide tüübid

C – ümar toru

Muuda
Tüüp T200 Laius Kõrgus Pindala
C/01 1,57 m 1,57 m 1,96 m² small-pdf-icon
C/02 1,65 m 1,65 m 2,11 m² small-pdf-icon
C/03 1,72 m 1,72 m 2,32 m² small-pdf-icon
C/04 1,80 m 1,80 m 2,54 m² small-pdf-icon
C/05 1,87 m 1,87 m 2,77 m² small-pdf-icon
C/06 1,95 m 1,95 m 2,95 m² small-pdf-icon
C/07 2,02 m 2,02 m 3,20 m² small-pdf-icon
C/08 2,10 m 2,10 m 3,46 m² small-pdf-icon
C/09 2,17 m 2,17 m 3,66 m² small-pdf-icon
C/10 2,25 m 2,25 m 3,94 m² small-pdf-icon
C/11 2,32 m 2,32 m 4,23 m² small-pdf-icon
C/12 2,39 m 2,39 m 4,52 m² small-pdf-icon
C/13 2,47 m 2,47 m 4,83 m² small-pdf-icon
C/14 2,54 m 2,54 m 5,06 m² small-pdf-icon
C/15 2,62 m 2,62 m 5,39 m² small-pdf-icon
C/16 2,69 m 2,69 m 5,64 m² small-pdf-icon
C/17 2,77 m 2,77 m 6,07 m² small-pdf-icon
C/18 2,84 m 2,84 m 6,33 m² small-pdf-icon
C/19 2,92 m 2,92 m 6,69 m² small-pdf-icon
C/20 2,99 m 2,99 m 7,06 m² small-pdf-icon
C/21 3,07 m 3,07 m 7,35 m² small-pdf-icon
C/22 3,14 m 3,14 m 7,74 m² small-pdf-icon
C/23 3,22 m 3,22 m 8,14 m² small-pdf-icon
C/24 3,29 m 3,29 m 8,55 m² small-pdf-icon
C/25 3,37 m 3,37 m 8,97 m² small-pdf-icon
C/26 3,44 m 3,44 m 9,29 m² small-pdf-icon
C/27 3,52 m 3,52 m 9,73 m² small-pdf-icon
C/28 3,59 m 3,59 m 10,06 m² small-pdf-icon
C/29 3,67 m 3,67 m 10,52 m² small-pdf-icon
C/30 3,74 m 3,74 m 10,98 m² small-pdf-icon
C/31 3,82 m 3,82 m 11,46 m² small-pdf-icon
C/32 3,89 m 3,89 m 11,94 m² small-pdf-icon
C/33 3,97 m 3,97 m 12,43 m² small-pdf-icon
C/34 4,04 m 4,04 m 12,81 m² small-pdf-icon
C/35 4,11 m 4,11 m 13,32 m² small-pdf-icon
C/36 4,19 m 4,19 m 13,85 m² small-pdf-icon
C/37 4,26 m 4,26 m 14,25 m² small-pdf-icon
C/38 4,34 m 4,34 m 14,79 m² small-pdf-icon
C/39 4,41 m 4,41 m 15,34 m² small-pdf-icon
C/40 4,49 m 4,49 m 15,90 m² small-pdf-icon
C/41 4,56 m 4,56 m 16,3 m² small-pdf-icon
C/42 4,64 m 4,64 m 16,9 m² small-pdf-icon
C/43 4,71 m 4,71 m 17,3 m² small-pdf-icon
C/44 4,79 m 4,79 m 18,0 m² small-pdf-icon
C/45 4,86 m 4,86 m 18,5 m² small-pdf-icon
C/46 4,94 m 4,94 m 19,1 m² small-pdf-icon
C/47 5,01 m 5,01 m 19,6 m² small-pdf-icon
C/48 5,09 m 5,09 m 20,2 m² small-pdf-icon
C/49 5,16 m 5,16 m 20,9 m² small-pdf-icon
C/50 5,24 m 5,24 m 21,5 m² small-pdf-icon
C/51 5,31 m 5,31 m 22,0 m² small-pdf-icon
C/52 5,39 m 5,39 m 22,7 m² small-pdf-icon
C/53 5,46 m 5,46 m 23,4 m² small-pdf-icon
C/54 5,54 m 5,54 m 24,0 m² small-pdf-icon
C/55 5,61 m 5,61 m 24,7 m² small-pdf-icon
C/56 5,69 m 5,69 m 25,5 m² small-pdf-icon
C/57 5,76 m 5,76 m 26,0 m² small-pdf-icon
C/58 5,84 m 5,84 m 26,7 m² small-pdf-icon
C/59 5,91 m 5,91 m 27,5 m² small-pdf-icon
C/60 5,99 m 5,99 m 28,2 m² small-pdf-icon
C/61 6,06 m 6,06 m 28,8 m² small-pdf-icon
C/62 6,14 m 6,14 m 29,5 m² small-pdf-icon
C/63 6,21 m 6,21 m 30,1 m² small-pdf-icon
C/64 6,29 m 6,29 m 31,1 m² small-pdf-icon
C/65 6,36 m 6,36 m 31,7 m² small-pdf-icon
C/66 6,44 m 6,44 m 32,5 m² small-pdf-icon
C/67 6,51 m 6,51 m 33,1 m² small-pdf-icon
C/68 6,59 m 6,59 m 33,9 m² small-pdf-icon
C/69 6,66 m 6,66 m 34,8 m² small-pdf-icon
C/70 6,74 m 6,74 m 35,6 m² small-pdf-icon
C/71 6,81 m 6,81 m 36,3 m² small-pdf-icon
C/72 6,89 m 6,89 m 37,1 m² small-pdf-icon
C/73 6,96 m 6,96 m 38,0 m² small-pdf-icon
C/74 7,04 m 7,04 m 38,9 m² small-pdf-icon
C/75 7,11 m 7,11 m 39,8 m² small-pdf-icon
C/76 7,18 m 7,18 m 40,4 m² small-pdf-icon
C/77 7,26 m 7,26 m 41,3 m² small-pdf-icon
C/78 7,33 m 7,33 m 42,2 m² small-pdf-icon
C/79 7,41 m 7,41 m 43,2 m² small-pdf-icon

E – vertikaalne ellips

Muuda
Tüüp T200 Laius Kõrgus Pindala
E/01 1,57 m 1,73 m 2,12 m² small-pdf-icon
E/02 1,72 m 1,88 m 2,52 m² small-pdf-icon
E/03 1,98 m 2,20 m 3,43 m² small-pdf-icon
E/04 2,13 m 2,36 m 3,94 m² small-pdf-icon
E/05 2,26 m 2,51 m 4,48 m² small-pdf-icon
E/06 2,57 m 2,83 m 5,67 m² small-pdf-icon
E/07 2,71 m 2,98 m 6,32 m² small-pdf-icon
E/08 2,85 m 3,14 m 7,00 m² small-pdf-icon
E/09 3,14 m 3,46 m 8,48 m² small-pdf-icon
E/10 3,28 m 3,62 m 9,26 m² small-pdf-icon
E/11 3,40 m 3,77 m 10,08 m² small-pdf-icon
E/12 3,58 m 3,93 m 10,95 m² small-pdf-icon
E/13 3,70 m 4,08 m 11,84 m² small-pdf-icon
E/14 3,83 m 4,24 m 12,76 m² small-pdf-icon
E/15 4,01 m 4,40 m 13,74 m² small-pdf-icon
E/16 4,14 m 4,55 m 14,73 m² small-pdf-icon
E/17 4,24 m 4,72 m 15,75 m² small-pdf-icon
E/18 4,41 m 4,87 m 16,83 m² small-pdf-icon
E/19 4,56 m 5,03 m 17,93 m² small-pdf-icon
E/20 4,68 m 5,18 m 19,07 m² small-pdf-icon
E/21 4,83 m 5,34 m 20,24 m² small-pdf-icon
E/22 4,97 m 5,50 m 21,45 m² small-pdf-icon
E/23 5,10 m 5,66 m 22,68 m² small-pdf-icon
E/24 5,24 m 5,81 m 23,96 m² small-pdf-icon
E/25 5,38 m 5,97 m 25,27 m² small-pdf-icon
E/26 5,53 m 6,13 m 26,62 m² small-pdf-icon
E/27 5,66 m 6,29 m 28,00 m² small-pdf-icon
E/28 5,81 m 6,45 m 29,42 m² small-pdf-icon
E/29 5,95 m 6,60 m 30,88 m² small-pdf-icon
E/30 6,10 m 6,75 m 32,37 m² small-pdf-icon
E/31 6,23 m 6,92 m 33,88 m² small-pdf-icon
E/32 6,38 m 7,07 m 35,45 m² small-pdf-icon
E/33 6,51 m 7,23 m 37,03 m² small-pdf-icon
E/34 6,66 m 7,39 m 38,67 m² small-pdf-icon
E/35 6,81 m 7,54 m 40,33 m² small-pdf-icon

R – lameprofiil

Muuda
Tüüp T200 Laius Kõrgus Pindala
R/01 2,19 m 1,69 m 2,88 m² small-pdf-icon
R/02 2,29 m 1,73 m 3,10 m² small-pdf-icon
R/03 2,40 m 1,78 m 3,32 m² small-pdf-icon
R/04 3,02 m 2,05 m 4,77 m² small-pdf-icon
R/05 3,40 m 2,24 m 5,88 m² small-pdf-icon
R/06 3,72 m 2,66 m 7,75 m² small-pdf-icon
R/07 3,81 m 2,70 m 8,08 m² small-pdf-icon
R/08 4,02 m 2,78 m 8,77 m² small-pdf-icon
R/09 4,19 m 2,87 m 9,49 m² small-pdf-icon
R/10 4,65 m 3,03 m 10,99 m² small-pdf-icon
R/11 5,29 m 3,28 m 13,42 m² small-pdf-icon
R/12 5,46 m 3,37 m 14,29 m² small-pdf-icon
R/13 5,67 m 3,45 m 15,17 m² small-pdf-icon
R/14 5,89 m 3,53 m 16,08 m² small-pdf-icon
R/15 6,04 m 3,62 m 17,03 m² small-pdf-icon
R/16 6,23 m 3,65 m 17,49 m² small-pdf-icon
R/17 6,39 m 3,74 m 18,47 m² small-pdf-icon
R/18 6,60 m 3,83 m 19,46 m² small-pdf-icon
R/19 6,68 m 3,87 m 19,98 m² small-pdf-icon
R/20 6,95 m 3,95 m 20,99 m² small-pdf-icon
R/21 7,23 m 4,24 m 23,64 m² small-pdf-icon

RA – lameprofiil

Muuda
Tüüp T200 Laius Kõrgus Pindala
RA/01 1,86 m 1,55 m 2,29 m² small-pdf-icon
RA/02 1,94 m 1,60 m 2,48 m² small-pdf-icon
RA/03 2,29 m 1,73 m 3,10 m² small-pdf-icon
RA/04 2,54 m 1,88 m 3,78 m² small-pdf-icon
RA/05 2,89 m 2,07 m 4,78 m² small-pdf-icon
RA/06 3,28 m 2,20 m 5,60 m² small-pdf-icon
RA/07 3,43 m 2,30 m 6,18 m² small-pdf-icon
RA/08 3,70 m 2,44 m 7,11 m² small-pdf-icon
RA/09 3,77 m 2,49 m 7,43 m² small-pdf-icon
RA/10 4,11 m 2,57 m 8,07 m² small-pdf-icon
RA/11 4,18 m 2,62 m 8,41 m² small-pdf-icon
RA/12 4,39 m 2,77 m 9,49 m² small-pdf-icon
RA/13 4,46 m 3,67 m 13,00 m² small-pdf-icon
RA/14 4,54 m 3,72 m 13,46 m² small-pdf-icon
RA/15 4,89 m 3,87 m 14,87 m² small-pdf-icon
RA/16 4,97 m 3,92 m 15,36 m² small-pdf-icon
RA/17 5,19 m 4,09 m 16,88 m² small-pdf-icon
RA/18 5,26 m 4,14 m 17,40 m² small-pdf-icon
RA/19 5,48 m 4,18 m 17,90 m² small-pdf-icon
RA/20 5,63 m 4,29 m 18,98 m² small-pdf-icon
RA/21 5,84 m 4,45 m 20,65 m² small-pdf-icon
RA/22 6,11 m 4,61 m 22,38 m² small-pdf-icon
RA/23 6,30 m 4,72 m 23,56 m² small-pdf-icon
RA/24 6,49 m 4,76 m 24,15 m² small-pdf-icon
RA/25 6,76 m 4,98 m 26,66 m² small-pdf-icon
RA/26 6,83 m 5,03 m 27,31 m² small-pdf-icon
RA/27 7,03 m 5,14 m 28,61 m² small-pdf-icon
RA/28 7,16 m 5,12 m 28,58 m² small-pdf-icon
RA/29 7,3 m 5,23 m 29,92 m² small-pdf-icon

TR – tunnelprofiil

Muuda
Tüüp T200 Laius Kõrgus Pindala
TR/01 2,89 m 2,55 m 5,94 m² small-pdf-icon
TR/02 3,22 m 2,78 m 7,25 m² small-pdf-icon
TR/03 3,29 m 2,84 m 7,60 m² small-pdf-icon
TR/04 3,69 m 3,06 m 9,07 m² small-pdf-icon
TR/05 3,83 m 3,18 m 9,85 m² small-pdf-icon
TR/06 4,08 m 3,35 m 11,09 m² small-pdf-icon
TR/07 4,22 m 3,48 m 11,95 m² small-pdf-icon
TR/08 4,63 m 3,69 m 13,75 m² small-pdf-icon
TR/09 4,83 m 3,88 m 15,21 m² small-pdf-icon
TR/10 4,96 m 4,00 m 16,23 m² small-pdf-icon
TR/11 5,32 m 4,15 m 17,76 m² small-pdf-icon
TR/12 5,57 m 4,32 m 19,39 m² small-pdf-icon
TR/13 5,82 m 4,50 m 21,09 m² small-pdf-icon
TR/14 6,01 m 4,69 m 22,89 m² small-pdf-icon
TR/15 6,22 m 5,21 m 26,12 m² small-pdf-icon
TR/16 6,44 m 5,39 m 28,12 m² small-pdf-icon
TR/17 6,69 m 5,57 m 30,18 m² small-pdf-icon
TR/18 6,94 m 5,74 m 32,31 m² small-pdf-icon
TR/19 7,22 m 5,99 m 35,29 m² small-pdf-icon
TR/20 7,37 m 6,03 m 36,02 m² small-pdf-icon
TR/21 7,62 m 6,20 m 38,34 m² small-pdf-icon
TR/22 7,87 m 6,38 m 40,73 m² small-pdf-icon
TR/23 8,12 m 6,55 m 43,19 m² small-pdf-icon
TR/24 8,31 m 6,66 m 44,86 m² small-pdf-icon
TR/25 8,48 m 6,70 m 45,68 m² small-pdf-icon

TC – tunnelprofiil

Muuda
Tüüp T200 Laius Kõrgus Pindala
TC/01 2,88 m 2,73 m 6,32 m² small-pdf-icon
TC/02 3,30 m 3,03 m 8,07 m² small-pdf-icon
TC/03 3,37 m 3,10 m 8,44 m² small-pdf-icon
TC/04 3,45 m 3,16 m 8,82 m² small-pdf-icon
TC/05 3,62 m 3,28 m 9,61 m² small-pdf-icon
TC/06 3,76 m 3,41 m 10,43 m² small-pdf-icon
TC/07 3,91 m 3,54 m 11,29 m² small-pdf-icon
TC/08 4,27 m 3,77 m 13,09 m² small-pdf-icon
TC/09 4,34 m 3,84 m 13,56 m² small-pdf-icon
TC/10 4,49 m 3,97 m 14,53 m² small-pdf-icon
TC/11 4,58 m 4,02 m 15,02 m² small-pdf-icon
TC12 4,80 m 4,22 m 16,57 m² small-pdf-icon
TC/13 5,09 m 4,81 m 19,65 m² small-pdf-icon
TC/14 5,24 m 4,93 m 20,82 m² small-pdf-icon
TC/15 5,51 m 5,11 m 22,64 m² small-pdf-icon
TC/16 5,73 m 5,30 m 24,54 m² small-pdf-icon
TC/17 5,97 m 5,49 m 26,51 m² small-pdf-icon
TC/18 6,27 m 5,74 m 29,26 m² small-pdf-icon
TC/19 6,48 m 5,85 m 30,67 m² small-pdf-icon
TC/20 6,55 m 5,91 m 31,39 m² small-pdf-icon
TC/21 6,77 m 6,11 m 33,62 m² small-pdf-icon
TC/22 7,09 m 6,36 m 36,69 m² small-pdf-icon
TC/23 7,20 m 6,41 m 37,46 m² small-pdf-icon
TC/24 7,45 m 6,59 m 39,87 m² small-pdf-icon
TC/25 7,57 m 6,73 m 41,54 m² small-pdf-icon
TC/26 7,69 m 6,78 m 42,35 m² small-pdf-icon
TC/27 7,86 m 6,90 m 44,05 m² small-pdf-icon
TC/28 8,15 m 7,16 m 47,56 m² small-pdf-icon
TC/29 8,32 m 7,28 m 49,35 m² small-pdf-icon

A – kaarprofiil

Muuda
Tüüp T200 Laius Kõrgus Pindala
A/001 1,75 m 0,85 m 1,16 m² small-pdf-icon
A/002 2,00 m 0,90 m 1,37 m² small-pdf-icon
A/003 2,50 m 1,10 m 2,09 m² small-pdf-icon
A/004 3,00 m 1,31 m 2,99 m² small-pdf-icon
A/005 3,00 m 1,43 m 3,33 m² small-pdf-icon
A/006 3,25 m 1,35 m 3,29 m² small-pdf-icon
A/007 3,25 m 1,48 m 3,69 m² small-pdf-icon
A/008 3,50 m 1,39 m 3,62 m² small-pdf-icon
A/009 3,50 m 1,64 m 4,44 m² small-pdf-icon
A/010 3,75 m 1,56 m 4,39 m² small-pdf-icon
A/011 3,75 m 1,68 m 4,82 m² small-pdf-icon
A/012 3,75 m 1,81 m 5,28 m² small-pdf-icon
A/013 4,00 m 1,59 m 4,74 m² small-pdf-icon
A/014 4,00 m 1,85 m 5,70 m² small-pdf-icon
A/015 4,00 m 1,97 m 6,17 m² small-pdf-icon
A/016 4,25 m 1,76 m 5,62 m² small-pdf-icon
A/017 4,25 m 1,89 m 6,13 m² small-pdf-icon
A/018 4,25 m 2,02 m 6,64 m² small-pdf-icon
A/019 4,50 m 1,80 m 6,04 m² small-pdf-icon
A/020 4,50 m 1,93 m 6,57 m² small-pdf-icon
A/021 4,50 m 2,06 m 7,12 m² small-pdf-icon
A/022 4,50 m 2,18 m 7,64 m² small-pdf-icon
A/023 4,75 m 1,84 m 6,47 m² small-pdf-icon
A/024 4,75 m 1,97 m 7,03 m² small-pdf-icon
A/025 4,75 m 2,10 m 7,60 m² small-pdf-icon
A/026 4,75 m 2,23 m 8,18 m² small-pdf-icon
A/027 4,75 m 2,34 m 8,70 m² small-pdf-icon
A/028 5,00 m 2,01 m 7,50 m² small-pdf-icon
A/029 5,00 m 2,14 m 8,10 m² small-pdf-icon
A/030 5,00 m 2,27 m 8,69 m² small-pdf-icon
A/031 5,00 m 2,39 m 9,28 m² small-pdf-icon
A/032 5,00 m 2,49 m 9,81 m² small-pdf-icon
A/033 5,25 m 2,05 m 7,98 m² small-pdf-icon
A/034 5,25 m 2,18 m 8,59 m² small-pdf-icon
A/035 5,25 m 2,31 m 9,23 m² small-pdf-icon
A/036 5,25 m 2,43 m 9,83 m² small-pdf-icon
A/037 5,25 m 2,56 m 10,48 m² small-pdf-icon
A/038 5,50 m 2,22 m 9,12 m² small-pdf-icon
A/039 5,50 m 2,35 m 9,76 m² small-pdf-icon
A/040 5,50 m 2,48 m 10,43 m² small-pdf-icon
A/041 5,50 m 2,60 m 11,06 m² small-pdf-icon
A/042 5,50 m 2,72 m 11,71 m² small-pdf-icon
A/043 5,75 m 2,25 m 9,61 m² small-pdf-icon
A/044 5,75 m 2,39 m 10,32 m² small-pdf-icon
A/045 5,75 m 2,52 m 11,00 m² small-pdf-icon
A/046 5,75 m 2,64 m 11,67 m² small-pdf-icon
A/047 5,75 m 2,76 m 12,34 m² small-pdf-icon
A/048 6,00 m 2,42 m 10,85 m² small-pdf-icon
A/049 6,00 m 2,56 m 11,60 m² small-pdf-icon
A/050 6,00 m 2,68 m 12,28 m² small-pdf-icon
A/051 6,00 m 2,81 m 13,01 m² small-pdf-icon
A/052 6,00 m 2,93 m 13,71 m² small-pdf-icon
A/053 6,25 m 2,46 m 11,43 m² small-pdf-icon
A/054 6,25 m 2,59 m 12,16 m² small-pdf-icon
A/055 6,25 m 2,73 m 12,95 m² small-pdf-icon
A/056 6,25 m 2,85 m 13,66 m² small-pdf-icon
A/057 6,25 m 2,97 m 14,40 m² small-pdf-icon
A/058 6,25 m 3,09 m 15,13 m² small-pdf-icon
A/059 6,50 m 2,49 m 11,98 m² small-pdf-icon
A/060 6,50 m 2,63 m 12,78 m² small-pdf-icon
A/061 6,50 m 2,76 m 13,55 m² small-pdf-icon
A/062 6,50 m 2,89 m 14,33 m² small-pdf-icon
A/063 6,50 m 3,01 m 15,08 m² small-pdf-icon
A/064 6,50 m 3,14 m 15,88 m² small-pdf-icon
A/065 6,75 m 2,67 m 13,40 m² small-pdf-icon
A/066 6,75 m 2,80 m 14,20 m² small-pdf-icon
A/067 6,75 m 2,93 m 15,00 m² small-pdf-icon
A/068 6,75 m 3,06 m 15,82 m² small-pdf-icon
A/069 6,75 m 3,18 m 16,60 m² small-pdf-icon
A/070 6,75 m 3,30 m 17,40 m² small-pdf-icon
A/071 7,00 m 2,71 m 14,04 m² small-pdf-icon
A/072 7,00 m 2,84 m 14,86 m² small-pdf-icon
A/073 7,00 m 2,97 m 15,70 m² small-pdf-icon
A/074 7,00 m 3,10 m 16,53 m² small-pdf-icon
A/075 7,00 m 3,23 m 17,38 m² small-pdf-icon
A/076 7,00 m 3,34 m 18,15 m² small-pdf-icon
A/077 7,00 m 3,47 m 19,02 m² small-pdf-icon
A/078 7,25 m 2,88 m 15,54 m² small-pdf-icon
A/079 7,25 m 3,01 m 16,39 m² small-pdf-icon
A/080 7,25 m 3,14 m 17,26 m² small-pdf-icon
A/081 7,25 m 3,26 m 18,09 m² small-pdf-icon
A/082 7,25 m 3,39 m 18,97 m² small-pdf-icon
A/083 7,25 m 3,51 m 19,82 m² small-pdf-icon
A/084 7,50 m 2,91 m 16,18 m² small-pdf-icon
A/085 7,50 m 3,05 m 17,11 m² small-pdf-icon
A/086 7,50 m 3,18 m 17,99 m² small-pdf-icon
A/087 7,50 m 3,31 m 18,89 m² small-pdf-icon
A/088 7,50 m 3,43 m 19,75 m² small-pdf-icon
A/089 7,50 m 3,56 m 20,67 m² small-pdf-icon
A/090 7,50 m 3,66 m 21,52 m² small-pdf-icon

LPA – madal võlvprofiil

Muuda
Tüüp T200 Max laius Min laius Max kõrgus Min kõrgus Pindala
LPA/01 5,75 m 5,67 m 2,02 m 1,73 m 9,30 m² small-pdf-icon
LPA/02 5,82 m 5,70 m 2,41 m 2,00 m 11,41 m² small-pdf-icon
LPA/03 6,04 m 5,92 m 2,45 m 2,04 m 12,00 m² small-pdf-icon
LPA/04 6,13 m 6,08 m 2,44 m 2,14 m 12,03 m² small-pdf-icon
LPA/05 6,35 m 6,29 m 2,48 m 2,18 m 12,63 m² small-pdf-icon
LPA/06 6,56 m 6,51 m 2,52 m 2,22 m 13,25 m² small-pdf-icon
LPA/07 6,66 m 6,56 m 2,73 m 2,33 m 14,77 m² small-pdf-icon
LPA/08 6,88 m 6,78 m 2,77 m 2,36 m 15,45 m² small-pdf-icon
LPA/09 7,09 m 7,00 m 2,81 m 2,40 m 16,13 m² small-pdf-icon
LPA/10 7,29 m 7,20 m 3,02 m 2,61 m 17,81 m² small-pdf-icon
LPA/11 7,45 m 7,39 m 2,51 m 2,21 m 14,80 m² small-pdf-icon
LPA/12 7,72 m 7,63 m 3,10 m 2,69 m 19,31 m² small-pdf-icon
LPA/13 7,77 m 7,65 m 2,76 m 2,36 m 17,19 m² small-pdf-icon
LPA/14 7,93 m 7,85 m 3,14 m 2,73 m 20,08 m² small-pdf-icon
LPA/15 8,15 m 8,07 m 3,18 m 2,77 m 20,85 m² small-pdf-icon
LPA/16 8,25 m 8,12 m 3,40 m 2,87 m 22,73 m² small-pdf-icon
LPA/17 8,46 m 8,33 m 3,44 m 2,91 m 23,58 m² small-pdf-icon
LPA/18 8,51 m 8,46 m 2,87 m 2,58 m 19,32 m² small-pdf-icon
LPA/19 8,68 m 8,55 m 3,47 m 2,95 m 24,42 m² small-pdf-icon
LPA/20 8,94 m 8,89 m 2,95 m 2,66 m 20,80 m² small-pdf-icon
LPA/21 9,04 m 8,94 m 3,17 m 2,76 m 22,84 m² small-pdf-icon
LPA/22 9,26 m 9,16 m 3,21 m 2,80 m 23,65 m² small-pdf-icon
LPA/23 9,31 m 9,19 m 3,76 m 3,24 m 28,31 m² small-pdf-icon
LPA/24 9,52 m 9,41 m 3,80 m 3,27 m 29,23 m² small-pdf-icon
LPA/25 9,74 m 9,62 m 3,84 m 3,31 m 30,17 m² small-pdf-icon
LPA/26 9,83 m 9,67 m 4,06 m 3,42 m 32,42 m² small-pdf-icon
LPA/27 10,05 m 9,89 m 4,10 m 3,46 m 33,42 m² small-pdf-icon
LPA/28 10,22 m 10,07 m 3,58 m 3,06 m 29,28 m² small-pdf-icon
LPA/29 10,27 m 10,10 m 4,14 m 3,50 m 34,43 m² small-pdf-icon
LPA/30 10,36 m 10,26 m 4,13 m 3,60 m 34,47 m² small-pdf-icon
LPA/31 10,53 m 10,45 m 3,61 m 3,20 m 30,19 m² small-pdf-icon
LPA/32 10,58 m 10,48 m 4,16 m 3,64 m 35,48 m² small-pdf-icon
LPA/33 10,68 m 10,53 m 4,38 m 3,74 m 37,93 m² small-pdf-icon
LPA/34 10,80 m 10,69 m 4,20 m 3,68 m 36,52 m² small-pdf-icon
LPA/35 10,96 m 10,88 m 3,69 m 3,28 m 32,04 m² small-pdf-icon
LPA/36 11,01 m 10,91 m 4,24 m 3,72 m 37,56 m² small-pdf-icon
LPA/37 11,20 m 11,01 m 4,68 m 3,92 m 42,66 m² small-pdf-icon
LPA/38 11,32 m 11,18 m 4,50 m 3,86 m 41,20 m² small-pdf-icon
LPA/39 11,54 m 11,39 m 4,54 m 3,90 m 42,32 m² small-pdf-icon
LPA/40 11,85 m 11,66 m 4,80 m 4,04 m 46,15 m² small-pdf-icon
LPA/41 11,95 m 11,82 m 4,79 m 4,14 m 46,20 m² small-pdf-icon
LPA/42 12,14 m 12,02 4,99 m 4,35 m 49,00 m² small-pdf-icon

HPA – kõrge võlvprofiil

Muuda
Tüüp T200 Max laius Min laius Max kõrgus Min kõrgus Pindala
HPA/01 5,75 m 5,19 m 3,17 m 1,73 m 15,61 m² small-pdf-icon
HPA/02 6,13 m 5,58 m 3,58 m 2,14 m 18,77 m² small-pdf-icon
HPA/03 6,35 m 5,82 m 3,62 m 2,18 m 19,65 m² small-pdf-icon
HPA/04 6,56 m 6,06 m 3,66 m 2,22 m 20,55 m² small-pdf-icon
HPA/05 7,45 m 6,72 m 4,11 m 2,21 m 26,27 m² small-pdf-icon
HPA/06 8,25 m 7,53 m 4,77 m 2,87 m 33,62 m² small-pdf-icon
HPA/07 8,46 m 7,77 m 4,81 m 2,91 m 34,79 m² small-pdf-icon
HPA/08 8,51 m 7,69 m 4,70 m 2,58 m 34,33 m² small-pdf-icon
HPA/09 8,68 m 7,84 m 5,07 m 2,95 m 37,70 m² small-pdf-icon
HPA/10 8,94 m 8,17 m 4,78 m 2,66 m 36,69 m² small-pdf-icon
HPA/11 9,31 m 8,51 m 5,36 m 3,24 m 42,66 m² small-pdf-icon
HPA/12 9,52 m 8,75 m 5,40 m 3,27 m 43,98 m² small-pdf-icon
HPA/13 9,74 m 8,82 m 5,66 m 3,31 m 47,25 m² small-pdf-icon
HPA/14 10,22 m 9,22 m 5,64 m 3,06 m 49,48 m² small-pdf-icon
HPA/15 10,36 m 9,49 m 5,96 m 3,60 m 52,77 m² small-pdf-icon
HPA/16 10,58 m 9,73 m 6,00 m 3,64 m 54,23 m² small-pdf-icon
HPA/17 10,80 m 9,79 m 6,26 m 3,68 m 57,87 m² small-pdf-icon
HPA/18 11,01 m 10,03 m 6,30 m 3,72 m 59,41 m² small-pdf-icon
HPA/19 11,20 m 10,23 m 6,51 m 3,92 m 62,35 m² small-pdf-icon
HPA/20 11,85 m 10,77 m 6,85 m 4,04 m 69,55 m² small-pdf-icon

HPE – horisontaalne ellips

Muuda
Tüüp T200 Laius Kõrgus Pindala
HPE/01 5,75 m 3,46 m 15,26 m² small-pdf-icon
HPE/02 5,82 m 4,00 m 18,11 m² small-pdf-icon
HPE/03 6,03 m 4,08 m 19,13 m² small-pdf-icon
HPE/04 6,13 m 4,29 m 20,47 m² small-pdf-icon
HPE/05 6,35 m 4,37 m 21,55 m² small-pdf-icon
HPE/06 6,56 m 4,44 m 22,66 m² small-pdf-icon
HPE/07 6,66 m 4,65 m 24,12 m² small-pdf-icon
HPE/08 6,88 m 4,73 m 25,30 m² small-pdf-icon
HPE/09 7,09 m 4,81 m 26,49 m² small-pdf-icon
HPE/10 7,28 m 5,22 m 29,68 m² small-pdf-icon
HPE/11 7,45 m 4,43 m 25,26 m² small-pdf-icon
HPE/12 7,72 m 5,38 m 32,32 m² small-pdf-icon
HPE/13 7,77 m 4,71 m 28,09 m² small-pdf-icon
HPE/14 7,93 m 5,46 m 33,68 m² small-pdf-icon
HPE/15 8,15 m 5,54 m 35,06 m² small-pdf-icon
HPE/16 8,25 m 5,74 m 36,87 m² small-pdf-icon
HPE/17 8,46 m 5,82 m 38,32 m² small-pdf-icon
HPE/18 8,51 m 5,15 m 33,67 m² small-pdf-icon
HPE/19 8,68 m 5,90 m 39,79 m² small-pdf-icon
HPE/20 8,94 m 5,31 m 36,37 m² small-pdf-icon
HPE/21 9,04 m 5,52 m 38,32 m² small-pdf-icon
HPE/22 9,26 m 5,60 m 39,76 m² small-pdf-icon
HPE/23 9,30 m 6,47 m 46,87 m² small-pdf-icon
HPE/24 9,52 m 6,55 m 48,50 m² small-pdf-icon
HPE/25 9,74 m 6,63 m 50,15 m² small-pdf-icon
HPE/26 9,83 m 6,83 m 52,31 m² small-pdf-icon
HPE/27 10,05 m 6,91 m 54,03 m² small-pdf-icon
HPE/28 10,22 m 6,12 m 47,92 m² small-pdf-icon
HPE/29 10,27 m 6,99 m 55,78 m² small-pdf-icon
HPE/30 10,36 m 7,20 m 58,06 m² small-pdf-icon
HPE/31 10,53 m 6,40 m 51,78 m² small-pdf-icon
HPE/32 10,58 m 7,28 m 59,87 m² small-pdf-icon
HPE/33 10,67 m 7,48 m 62,22 m² small-pdf-icon
HPE/34 10,80 m 7,35 m 61,71 m² small-pdf-icon
HPE/35 10,96 m 6,56 m 55,13 m² small-pdf-icon
HPE/36 11,01 m 7,43 m 63,57 m² small-pdf-icon
HPE/37 11,20 m 7,85 m 68,48 m² small-pdf-icon
HPE/38 11,32 m 7,72 m 67,94 m² small-pdf-icon
HPE/39 11,54 m 7,80 m 69,89 m² small-pdf-icon
HPE/40 11,85 m 8,08 m 74,46 m² small-pdf-icon
HPE/41 11,95 m 8,29 m 77,09 m² small-pdf-icon
HPE/42 12,14 m 8,70 m 82,43 m² small-pdf-icon

Eelised

• Tugev ja vastupidav konstruktsioon
• Erineva suuruse ja kujuga profiillahendused

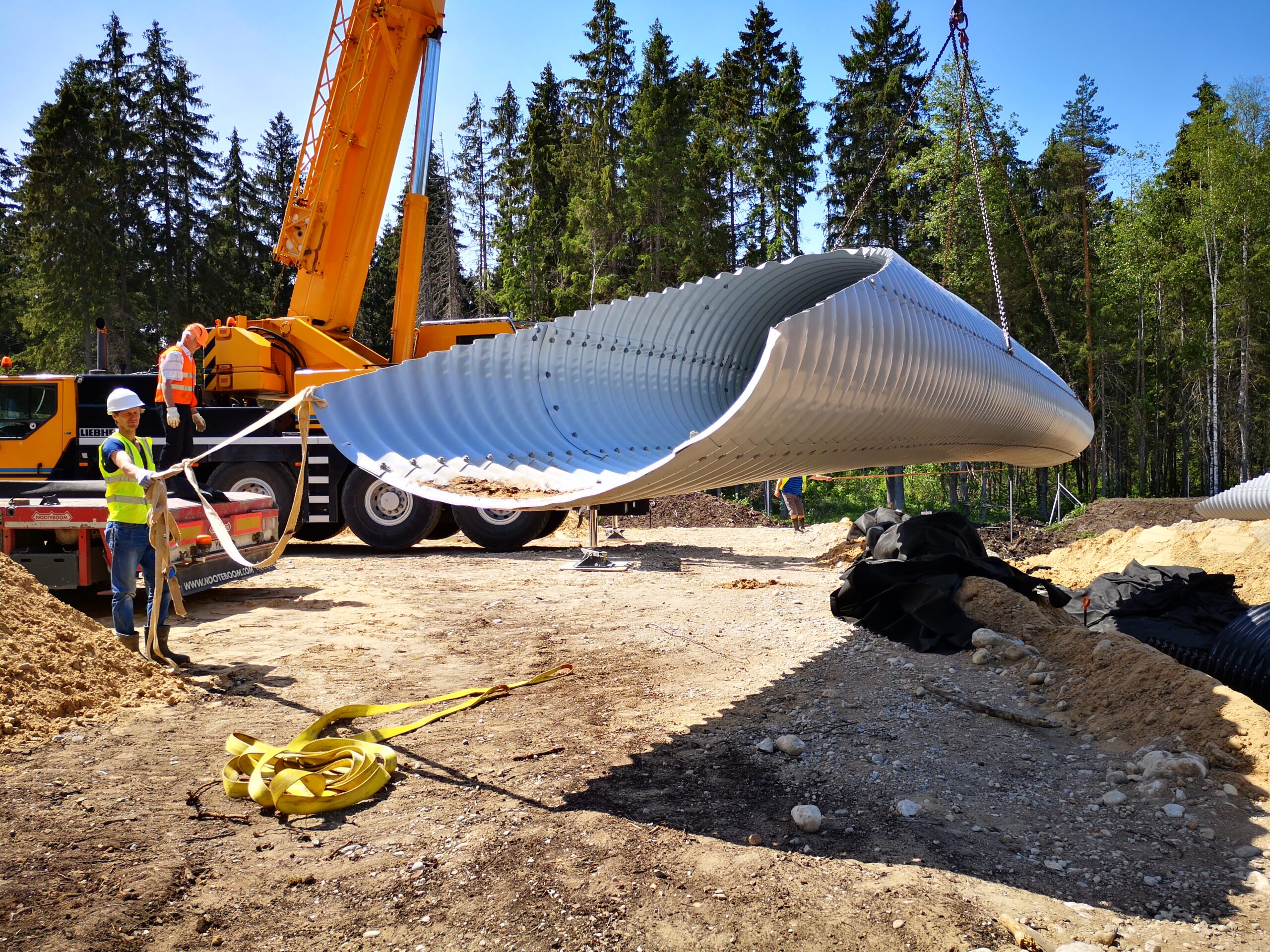

• Lihtne montaažiprotsess
• Ehitusjärgus lihtne käsitleda
• Peale paigaldust valmis koheseks kasutamiseks
• Olemasolevat strukruuri on võimalik teraskaartega pikendada või renoveerida

Esita päring

"*" indicates required fields

0
Minu ostukorv
